EJK CONTROLLER SPECS

Back

INSTALL INSTRUCTIONS

MFG P/N 9120273

This EJK controller fits the following models:

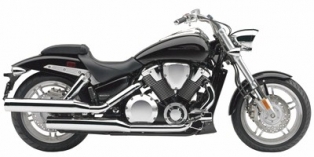

Honda VTX 1800 2002-2008

Price:

$250.00

Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

BASE SETTINGS

View controller feature and setting descriptions

MODE:

GREEN

YELLOW

RED

GREEN

BLUE

YELLOW

BLUE

RED

BLUE

#8 BLUE LED

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

GRN LWR SW PT

YEL LWR SW PT

RED LWR SW PT

NONE

Initial recommended base settings for stage 1 modifications.

GRN @ 4

YEL @ 2

RED @ 6

G/B @ 4.5

Y/B @ 4

R/B @ 4.5

SPECIFIC TECH INFORMATION

View General Tech Information

Honda VTX 1800 Bikes - Recommended to perform GROUND FIX - The VTX 1800 bikes continue to have problems with the overall OEM ground locations. The powder coated frame on the bikes does not allow for a proper grounding source. View a great tech article from Bareass Choppers here

Honda VTX 1800 Bikes - Recommended to remove Pair Valve Assembly - Check out this link for a great walk-through of removing the PAIR valve assembly and the secondary air system on a VTX 1800. View how to article from Bareass Choppers here

The GREEN zone engages at 1250 rpm with a GREEN/BLUE setting of 4.5.
