EJK Tuning Fuel Controller


EJK CONTROLLER SPECS

Back
MFG P/N 9120445

INSTALL INSTRUCTIONS

MFG P/N 9120445


This EJK controller fits the following models:

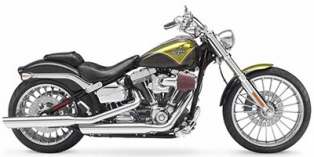

Harley Davidson Softail CVO Models 2013-2014 Add to Cart

Price: $250.00


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

DP SAFR Diagnostic Tool


BASE SETTINGS

View controller feature and setting descriptions
MODE: GREEN YELLOW RED
GREEN BLUE
YELLOW BLUE
RED BLUE
#8 BLUE LED
FEATURES: GREEN FUEL YELLOW FUEL RED FUEL DECEL FUEL YEL LWR SW PT RED LWR SW PT DECEL FUEL
Initial recommended base settings for stage 1 modifications.
  GRN @ 3.5 YEL @ 2.5 RED @ 2.5 G/B @ 2 Y/B @ 4 R/B @ 4.5

SPECIFIC TECH INFORMATION

View General Tech Information
Controller comes with O2 Bypasses OX-023 and OX-024. Your stock O2 connections need to be disconnected and the bypasses installed.

Installation of Injector Harness is front and rear specific - Your bike is equipped with Harley's Engine Idle Temperature Management System (EITMS). When engine temperature exceeds 284 F, the EITMS will turn off the rear cylinder fuel injector. Idle speed will be maintained, however the rear cylinder will become an "air pump" which will work to cool the engine. Dobeck controllers power-up through our channel 1 injector connection. The connector pair with double pinned RED and YELLOW wires is channel 1 and should be connected to the FRONT cylinder. Click image to the right to view example.

Referencing Dobeck Channel 1 Connector
