EJK CONTROLLER SPECS

Back

INSTALL INSTRUCTIONS

MFG P/N 9120287

This EJK controller fits the following models:

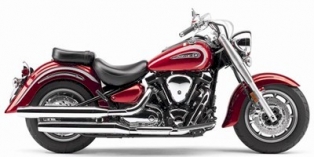

Yamaha Road Star 2008-2014

Price:

$250.00

Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

BASE SETTINGS

View controller feature and setting descriptions

MODE:

GREEN

YELLOW

RED

GREEN

BLUE

YELLOW

BLUE

RED

BLUE

#8 BLUE LED

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

GRN LWR SW PT

YEL LWR SW PT

RED LWR SW PT

NONE

Initial recommended base settings for stage 1 modifications.

GRN @ 1

YEL @ 2

RED @ 0.5

G/B @ 0.5

Y/B @ 4

R/B @ 4

SPECIFIC TECH INFORMATION

View General Tech Information

Controller plugs into a 6 pin sub-harness and NOT directly onto the injectors.

This bike uses an AIS system which needs to be blocked off to prevent decel popping/backfiring.
