EJK CONTROLLER SPECS

Back

INSTALL INSTRUCTIONS

MFG P/N 8110058

This EJK controller fits the following models:

Yamaha WR 250F 2015-2016

Price:

$250.00

Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

BASE SETTINGS

View controller feature and setting descriptions

MODE:

GREEN

YELLOW

RED

GREEN

BLUE

YELLOW

BLUE

RED

BLUE

#8 BLUE LED

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

ACCEL PUMP FUEL

YEL LWR SW PT

RED LWR SW PT

ACCEL PUMP

Initial recommended base settings for stage 1 modifications.

GRN @ 4

YEL @ 4.5

RED @ 5

G/B @ 4.5

Y/B @ 5

R/B @ 3.5

Controller settings for diagnostic purposes of running 0% change through entire drive cycle. These settings mean your vehicle is running on the stock ECU map.

GRN @ 3

YEL @ 3

RED @ 3

G/B @ 3

Y/B @ 5

R/B @ 3.5

SPECIFIC TECH INFORMATION

View General Tech Information

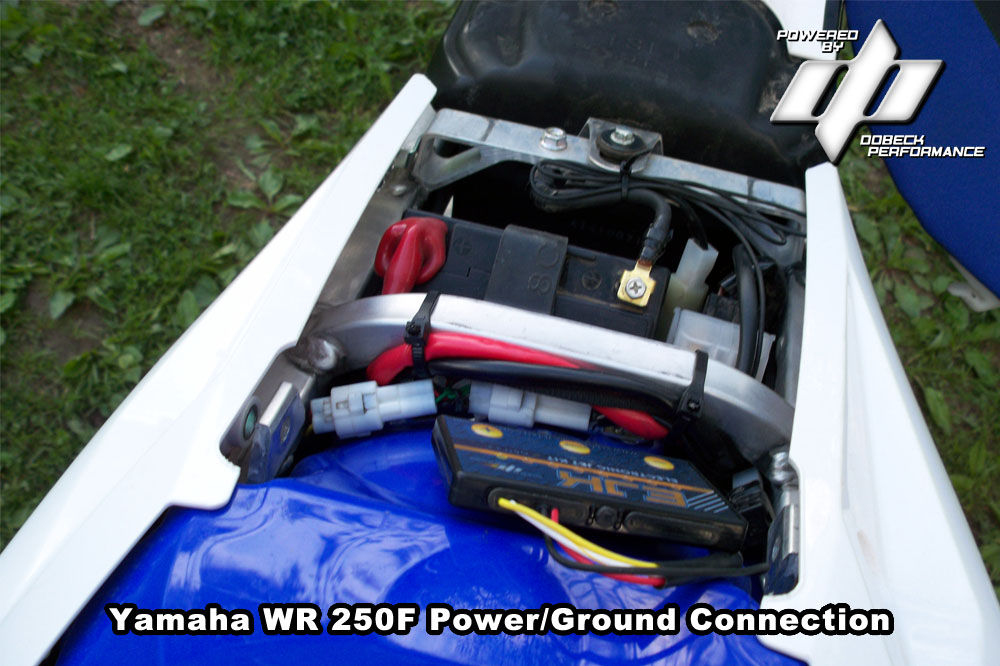

Controller Power and Ground are made through a 3 pin sub connection. Auxillary power connection is located right next to the battery.
