EJK CONTROLLER SPECS

Back

INSTALL INSTRUCTIONS

MFG P/N 9310209

This EJK controller fits the following models:

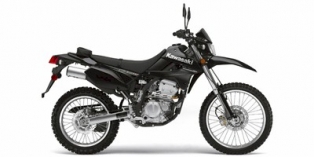

Kawasaki KLX 250S 2008-2020
Kawasaki KLX300D/S 2020-2021

Price:

$250.00

Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

BASE SETTINGS

View controller feature and setting descriptions

MODE:

GREEN

YELLOW

RED

GREEN

BLUE

YELLOW

BLUE

RED

BLUE

#8 BLUE LED

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

GRN LWR SW PT

YEL LWR SW PT

RED LWR SW PT

NONE

Recommended settings for a STOCK bike.

GRN @ 2

YEL @ 1

RED @ 1

G/B @ 4.5

Y/B @ 2.5

R/B @ 3.5

Initial recommended base settings for stage 1 modifications. Snorkel lid removed.

GRN @ 4

YEL @ 3

RED @ 2

G/B @ 2

Y/B @ 3

R/B @ 2

Base settings for stage 1 modifications. Air box Lid or KDX snorkel On

GRN @ 4

YEL @ 1

RED @ 1

G/B @ 2

Y/B @ 3

R/B @ 2

Recommended base settings for ASIAN bikes with stage 1 modifications.

GRN @ 2

YEL @ 4.5

RED @ 6

G/B @ 4.5

Y/B @ 2.5

R/B @ 4.5

Recommended base settings for EUROPEAN bikes with stage 1 modifications.

GRN @ 0.5

YEL @ 4.5

RED @ 6

G/B @ 4.5

Y/B @ 2.5

R/B @ 4.5

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

GRN LWR SW PT

YEL LWR SW PT

RED LWR SW PT

NONE

Recommended settings KLX300 Base Settings

GRN @ 0.5

YEL @ 2.5

RED @ 3

G/B @ 4.5

Y/B @ 4.5

R/B @ 5.5

SPECIFIC TECH INFORMATION

View General Tech Information

The GREEN zone engages at 1100 rpms with a GREEN/BLUE setting of 2 and 1900 rpms with a light position of 4.5.

7/27/2018 programming updated to work for all years of KLX250 models.
