EJK Tuning Fuel Controller


EJK CONTROLLER SPECS

Back
MFG P/N 8120170

INSTALL INSTRUCTIONS

MFG P/N 8120170


This EJK controller fits the following models:

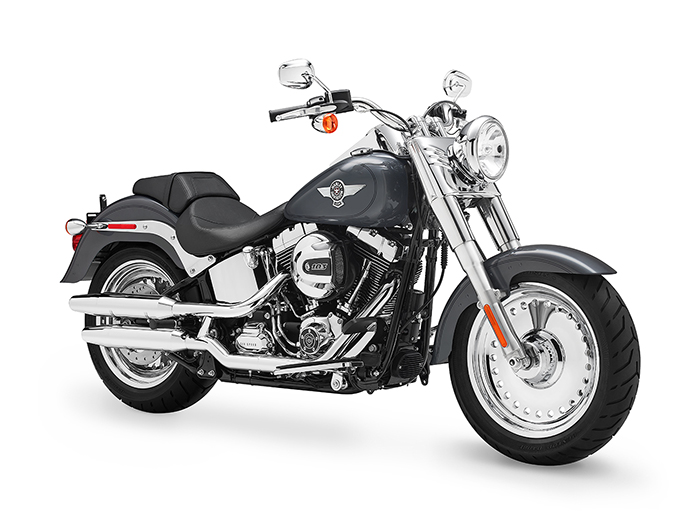

Harley Davidson Softail 2016-2017 Add to Cart
Harley Davidson Dyna 110 2016-2017 Add to Cart

Price: $250.00


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

DP SAFR Diagnostic Tool


BASE SETTINGS

View controller feature and setting descriptions
MODE: GREEN YELLOW RED
GREEN BLUE
YELLOW BLUE
RED BLUE
#8 BLUE LED
No base settings entered.

SPECIFIC TECH INFORMATION

View General Tech Information
Controller comes with O2 harnesses 451 and 452. Your stock O2 connections need to be disconnected and the harnesses installed in between the connections.

YELLOW zone has a TIMEOUT after 5 seconds to allow for a large shot of fuel during acceleration. The range of adjustment is from 20% to 50%. The zone is reset each time after either entering the top end RED zone or dropping back into the cruise GREEN zone.

Factory injector connections DO look different from the MT Pockets Performance controller connectors, but the male and female connections will plug in ok.

Installation of Injector Harness is front and rear specific - Your bike is equipped with Harley's Engine Idle Temperature Management System (EITMS). When engine temperature exceeds 284° F, the EITMS will turn off the rear cylinder fuel injector. Idle speed will be maintained, however the rear cylinder will become an "air pump" which will work to cool the engine. MT Pockets Performance controllers power-up through our channel 1 injector connection. The connector pair with double pinned RED and YELLOW wires is channel 1 and should be connected to the FRONT cylinder. Click image to the right to view example.

Referencing MT Pockets Performance Channel 1 Connector
