EJK CONTROLLER SPECS

Back

INSTALL INSTRUCTIONS

MFG P/N 9420045

This EJK controller fits the following models:

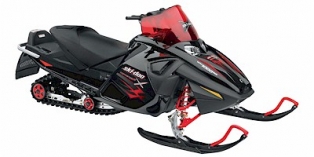

Ski Doo SDI 600/1000 2005-2008

Price:

$250.00

Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

BASE SETTINGS

View controller feature and setting descriptions

MODE:

GREEN

YELLOW

RED

GREEN

BLUE

YELLOW

BLUE

RED

BLUE

#8 BLUE LED

FEATURES:

GREEN FUEL

YELLOW FUEL

RED FUEL

GRN LWR SW PT

YEL LWR SW PT

RED LWR SW PT

NONE

Initial recommended base settings for stage 1 modifications.

GRN @ 1.5

YEL @ 4.5

RED @ 4.5

G/B @ 2

Y/B @ 3.5

R/B @ 3.5

Settings for Crank Shops Twin pipes and the Ski-doo factory Jan 2007 download.

GRN @ 1

YEL @ 3.5

RED @ 3.5

G/B @ 4.5

Y/B @ 3.5

R/B @ 4.5

SPECIFIC TECH INFORMATION

View General Tech Information

The GREEN zone engages at 1700 rpm with a GREEN/BLUE setting of 2.

The EJK controller needs to be plugged into the PRIMARY set of injectors which will be the outside injectors. On the Ski Doo SDI 1000 there will be a blue stripe around the bottom of the injector. On the SDI 600 models there is not a blue stripe.
