EJK Tuning Fuel Controller


EJK CONTROLLER SPECS

Back
MFG P/N 9420046

INSTALL INSTRUCTIONS

MFG P/N 9420046


This EJK controller fits the following models:

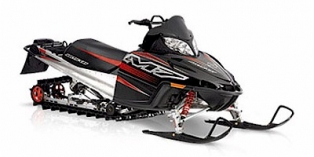

Arctic Cat M/F 6/7/8 2005-2009 Add to Cart
Arctic Cat King Cat 800/900 2003-2007 Add to Cart

Price: $250.00


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

DP SAFR Diagnostic Tool


BASE SETTINGS

View controller feature and setting descriptions
MODE: GREEN YELLOW RED
GREEN BLUE
YELLOW BLUE
RED BLUE
#8 BLUE LED
FEATURES: GREEN FUEL YELLOW FUEL RED FUEL GRN LWR SW PT VC OFFSET RED LWR SW PT NONE
Initial recommended base settings for stage 1 modifications.
  GRN @ 3.5 YEL @ 2.5 RED @ 1.5 G/B @ 4 Y/B @ 3 R/B @ 4

SPECIFIC TECH INFORMATION

View General Tech Information
EJK controller plugs into the fuel injectors and the temp sensor.

The YELLOW/BLUE mode controls the voltage offset of the temp sensor which can be used to indirectly subtact fuel from the snowmobile. A setting of 0.5 is like running on the stock ECU map. A setting of 8 will result in the largest voltage offset of 1.2 volts allowed by the tune-up.

The GREEN zone engages at 3900 rpm with a GREEN/BLUE setting of 4.


For í07-Ď09 F/M8ís & Crossfire you must re-pin both, unplug the factory injector connector off of the PTO injector. Next you need to remove the connectorís pins by taking a small pick type tool and from the front of the connector gently pry up the pinís locking device (see figure 2) while at the same time gently pulling on the corresponding wire. (See figure 3) Repeat on remaining pin and MAG injector. Then reinsert the Green/Red on the LH and Green/Black RH PTO. (See figure 4) MAG connector yellow/red LH and yellow/black RH.
