EJK Tuning Fuel Controller


EJK CONTROLLER SPECS

Back
MFG P/N 8120130

INSTALL INSTRUCTIONS

MFG P/N 8120130

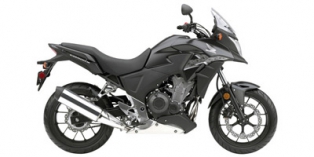

This EJK controller fits the following models:
Honda CB 500 X/F 2013-2016 Add to Cart
Honda CBR 500R 2013-2016 Add to Cart

Price: $250.00


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

DP SAFR Diagnostic Tool


BASE SETTINGS

View controller feature and setting descriptions
MODE: GREEN YELLOW RED
GREEN BLUE
YELLOW BLUE
RED BLUE
#8 BLUE LED
FEATURES: GREEN FUEL YELLOW FUEL RED FUEL GRN LWR SW PT YEL LWR SW PT RED LWR SW PT NONE
Initial recommended base settings for stage 1 modifications.
  GRN @ 3.5 YEL @ 2 RED @ 2.5 G/B @ 8 Y/B @ 4 R/B @ 5
Controller settings for diagnostic purposes of running 0% change through entire drive cycle. These settings mean your vehicle is running on the stock ECU map.
  GRN @ 3 YEL @ 0.5 RED @ 4 G/B @ 8 Y/B @ 4 R/B @ 5

SPECIFIC TECH INFORMATION

View General Tech Information
The GREEN zone engages at 2900 rpm with a GREEN/BLUE setting of 8.

Controller comes with O2 Bypass OX-022. Your stock O2 connection needs to be disconnected and the bypass installed.

DP EJK CONTROLLER INSTALLATION VIDEO:


PLUGGING THE PAIR VALVE VIDEO:

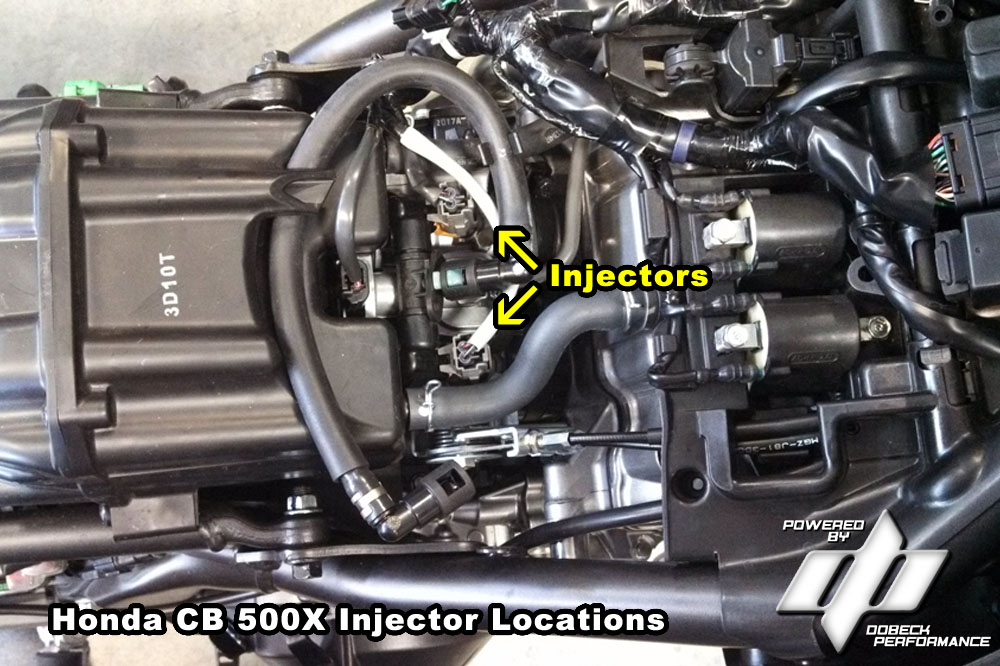

Honda CB 500 X Injector Locations

Honda CB 500 X Ground Location
